What Are Handlebar Shims?

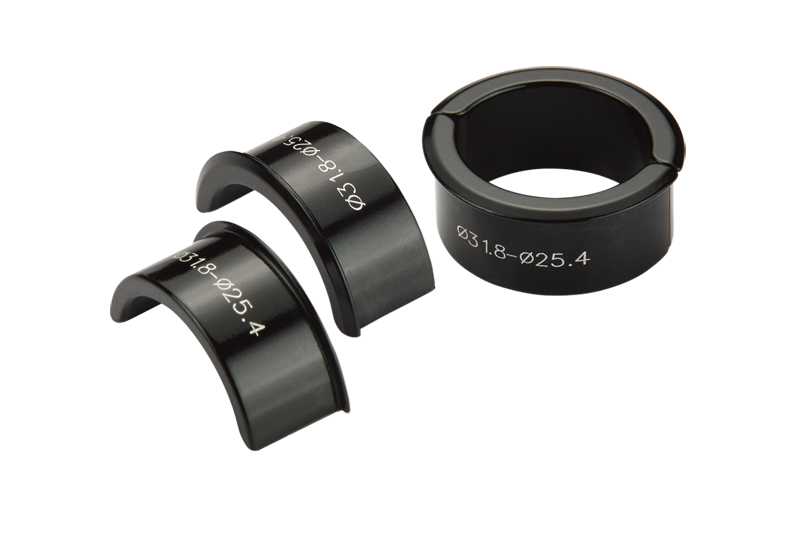

Handlebar shims are precision-machined adapters that allow you to fit a handlebar with a smaller clamp diameter into a stem with a larger clamp diameter. Instead of replacing a perfectly good bar or stem, you insert a shim to bridge the size difference and create a secure, creak-free interface.
Most modern stems are designed around a specific clamp size, but riders often upgrade or swap handlebars for better ergonomics, weight savings, or improved control. When the bar diameter and stem clamp don’t match, the right handlebar shim turns an otherwise incompatible setup into a safe, reliable, and cost-effective solution.
Common Handlebar and Stem Clamp Sizes
Understanding clamp diameters is the first step in choosing the correct handlebar shim. The two key dimensions you need are:
- Handlebar clamp diameter – the diameter of the bar section that sits inside your stem.
- Stem clamp diameter – the inner diameter of the stem where it clamps the bar.
The most common handlebar clamp sizes you'll encounter are:
- 25.4 mm – older MTB and some commuter bars.
- 26.0 mm – classic road bars.
- 31.8 mm – the current standard for most modern road and mountain bikes.
- 35.0 mm – increasingly common on aggressive trail, enduro, and downhill setups.
When your bar is smaller than your stem clamp, a shim can adapt, for example, a 25.4 mm or 26.0 mm handlebar to a 31.8 mm stem, or a 31.8 mm bar to a 35.0 mm stem, depending on the shim specification.
Why Use Handlebar Shims Instead of Replacing Components?
Handlebar shims exist to solve real-world compatibility problems while protecting your budget and components. Here are key benefits:
1. Cost-Effective Upgrades
Good stems and handlebars are expensive. A high-quality shim lets you keep using parts you trust while still upgrading other parts of your cockpit. Whether you're moving a favorite bar to a new frame or trying a new stem length, a shim saves money and reduces waste.
2. Preserve Your Preferred Fit
Many riders spend years dialing in a perfect cockpit: the right rise, sweep, width, and reach. If that dream handlebar happens to be a different clamp size than your current stem, a shim allows you to keep your ergonomic sweet spot rather than starting over with a new bar.
3. Reduce Component Waste
Instead of discarding fully functional parts simply because standards have shifted, shims help extend the life of quality components. This approach is both budget-friendly and more sustainable.
4. Flexible Swapping Between Bikes
If you own multiple bikes with different cockpit standards, shims make it easier to move bars and stems between setups. You can quickly experiment with different bar shapes and widths while maintaining safe clamping and proper alignment.
Key Features of Quality Handlebar Shims
Not all shims are created equal. Well-engineered shims focus on strength, precision, and ease of installation to ensure they work as an integrated part of your cockpit, not a compromise.
Precision-Machined Fit
Accurate inner and outer diameters are essential. The shim should sit flush around the bar and inside the stem clamp, eliminating play, preventing rotation, and distributing clamping forces evenly. A precise fit ensures quiet operation and minimizes the risk of damage to the bar.
Strong, Lightweight Materials
High-quality shims are typically made from lightweight alloys engineered to handle the same stresses as the stem and bar themselves. They are designed to withstand repeated clamping and hard riding without deforming or cracking.
Secure Interface and Surface Finish
The contact surfaces of the shim should help prevent bar slip without requiring excessive torque on the stem bolts. Quality machining and appropriate surface finish help keep the bar locked in place, even during aggressive riding.
Compatibility with Modern Stems
Well-designed shims work with common modern stems, including four-bolt faceplate designs. They should sit cleanly in the clamp area and allow normal torque settings as recommended by the stem and bar manufacturers.
When Should You Use a Handlebar Shim?
Handlebar shims are particularly useful in these scenarios:
- Upgrading to a new stem while keeping a favorite narrow or classic bar.
- Reusing older handlebars on a new frame with a different cockpit standard.
- Testing different bar shapes (rise, backsweep, upsweep) without buying a new stem for each experiment.
- Sharing components between bikes that use different clamp diameters.
As long as the shim is designed for your exact diameter combination, and you follow correct torque specifications, it is a reliable, everyday solution – not just a temporary fix.
How to Choose the Right Handlebar Shim
To select the correct shim, you need two numbers: your bar clamp diameter and your stem clamp diameter. Once you have those, choosing the right shim is straightforward.
1. Measure or Confirm Your Bar Diameter
Look for sizing printed or etched on the handlebar near the clamp area. If it's not visible, you can use vernier calipers for an accurate measurement. Common values are 25.4 mm, 26.0 mm, 31.8 mm, or 35.0 mm.
2. Check Your Stem Clamp Diameter
Most stems also have their clamp size marked, often on the underside or inside the faceplate area. Again, calipers can confirm if the printing has worn away. Match this value to the "outer" or "to" diameter in the shim specification.
3. Match Inner and Outer Diameters
Shim specifications are typically described as "bar to stem" sizes, for example:
- 25.4 mm to 31.8 mm
- 26.0 mm to 31.8 mm
- 31.8 mm to 35.0 mm
The inner diameter must match your handlebar exactly, and the outer diameter must match your stem clamp. Using "almost" the right size is unsafe and can lead to bar slip or damage.
4. Consider Your Riding Style
If you ride aggressively, such as enduro, park, or downhill, prioritize shims from brands that specifically state compatibility with high-load applications. The combination of strong materials and precise machining is critical when your cockpit is subjected to frequent high impacts and heavy braking forces.
How to Install Handlebar Shims Safely
Correct installation is just as important as choosing the right size. Follow these guidelines for a secure cockpit.
Step 1: Clean the Clamping Surfaces
Remove the handlebar and faceplate. Clean the stem clamp area, handlebar clamp zone, and the shims themselves with a degreaser if needed, then dry thoroughly. Any grit or grease can affect clamping force and cause creaks or slipping.
Step 2: Position the Shims
Place the shims evenly around the handlebar clamp section so that they fully cover the clamping area inside the stem. Ensure that any split or opening in the shim is aligned consistently on both top and bottom to maintain even pressure.
Step 3: Install the Bar and Faceplate
Slide the shims and bar into the stem clamp, then reinstall the faceplate. Make sure the bar is centered and rotated to your preferred angle before you fully tighten the bolts. Start the bolts by hand to avoid cross-threading.
Step 4: Tighten Bolts Evenly to Correct Torque
Use a calibrated torque wrench and follow the stem manufacturer's torque recommendations. Tighten the bolts in a cross pattern in small increments, ensuring the gap between the faceplate and stem body is roughly equal on top and bottom. Over-tightening can damage both the bar and the shim; under-tightening can allow movement.
Step 5: Test for Slip and Creaks
Before riding, brace the front wheel and attempt to twist the bar with moderate force. It should not move independently of the wheel. On your first few rides, listen for creaks and occasionally check bolt torque to ensure everything remains stable as the system beds in.
Handlebar Shims and Bike Fit Optimization
Dialing in your cockpit is one of the most impactful ways to improve comfort, control, and efficiency on the bike. Handlebar shims quietly support that process by freeing you from clamp-size limitations.
- Fine-tune reach by pairing your preferred bar with a stem length that suits your body and riding style.
- Adjust stack and wrist angle with different rises and sweeps without replacing stems each time.
- Experiment with width to balance leverage and maneuverability across different bikes or disciplines.
Instead of choosing components strictly based on clamp size, you can prioritize ergonomics and handling characteristics, then use shims to make the hardware work together securely.
Myths and Misconceptions About Handlebar Shims
Because shims sit between two structural components, they're often misunderstood. Here are some common misconceptions clarified:
“Shims Are Only for Temporary Use”
High-quality shims are designed for long-term use and everyday riding. When sized and installed correctly, they form a rigid, integrated interface between bar and stem and can safely remain in place for the life of the components.
“Shims Automatically Weaken the Cockpit”
In a properly designed system, the shim doesn't weaken the front end; it spreads loads over a larger contact area and ensures uniform pressure. Issues typically arise only when mismatched sizes or poorly manufactured shims are used, or when torque settings are ignored.
“You Can Mix & Match Sizes Freely”
Using any shim that "almost fits" is unsafe. Minor diameter mismatches, improvised materials, or stacking multiple shims can all compromise safety. Always use a single, purpose-built shim that precisely matches your bar and stem diameters.
Maintenance Tips for Long-Lasting Performance
Once installed, handlebar shims require minimal attention, but periodic checks will keep your cockpit feeling solid and quiet.
- Inspect during regular service – whenever you service your headset or swap stems, visually check the shims for damage, galling, or deformation.
- Reconfirm torque – after major impacts or transport, verify that the stem bolts are still tightened to spec.
- Keep contact areas clean – grit can cause creaks and increase wear. A quick wipe during maintenance goes a long way.
With occasional attention, a good set of shims can quietly do its job for years without drawing any attention to itself – which is exactly what you want from a structural adapter.
Are Handlebar Shims Right for Your Bike?
If you're trying to unite a favorite bar with a new stem, reuse a classic cockpit on a modern frame, or experiment with fit without constantly buying new hardware, handlebar shims are a smart, efficient solution. They offer:
- Reliable compatibility across different clamp standards.
- Cost savings by extending the life of existing bars and stems.
- Greater freedom to focus on ride feel and ergonomics instead of strict sizing constraints.
Choose accurately sized, well-machined shims, install them carefully, and they'll seamlessly integrate into your cockpit, helping you ride more comfortably and confidently on any terrain.
